Water Lube Oil-Free Air Compressor

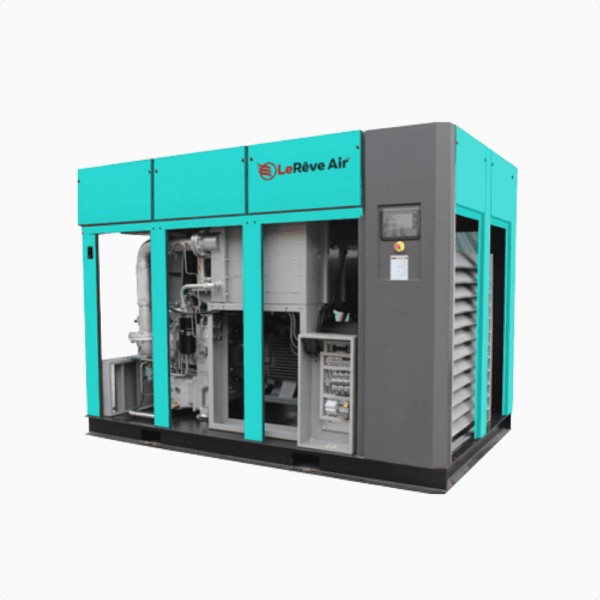

Product Name: Water Lube Oil-Free Air Compressor
Gas Type: Air
Power: 15KW – 350KW
Voltage: 220V, 380V, 460V (50Hz/60Hz)
Pressure: 7-20Bar
Outlet Size: G1/2-12″
Lubrication Style: Oil-Free Water Lube Type
Drive Method: Fixed Speed / Variable Speed
Warranty: 2-Years
Certification: CE / ISO
Customization: ODM / OEM Available



Category: Water Lube Oil-Free Compressor Tag: 100% Oil-Free Water-Lubricated
  • Description
  • Parameters
Description

WATER LUBE OIL-FREE COMPRESSOR

In recent years, there has been a paradigm shift in the demand and application of oil-free compressors. While this is true, many organizations have not fully discovered the full potential a water lube oil-free compressor has. Also called a water-injected screw air, this compressor mostly comes as single screw air compressors. In this type of oil-free compressor, the water and air get mixed and compressed. In this process, the water is solely responsible for sealing, cooling, lubricating, and de-noising the machinery.



Discover More About This Compressor

When it comes to the water lube oil-free compressor, a lot has to be said about it. Let’s quickly look at more info about the product description.

·        Air Purity: Our machinery produces clear air after it has been decontaminated by water.

·        Air Quality: You don’t need oil to get the machine working. It is completely 100% oil-free.

·        Lubrication: Our one and only method of lubricating this machine through water.

·        Air Temperature: Our machine runs on an air temperature that’s less than 550C.

·        Compression: This product operates on single-stage compression.

·        Noise: Due to its low level of vibration, this product has a low noise production.

·        Maintenance: You don’t need much maintenance on this product except for the air and the water filter elements.

Our water lube oil-free air compressor has a power range between 15KW and 350KW and maintains a pressure of 7-20Bar. The product comes with a 2-year warranty and voltage capacities ranging from 220V, 380V, and 460V (50Hz/60Hz). It is also important to note that the product does not exceed a 450C machine operating temperature which is responsible for sealing, cooling, and lubricating.



Product Advantage – WATER LUBE OIL-FREE COMPRESSOR

Our water lube Oil-free air pressure comes with so many benefits that include the following:

·        While functioning, the machine has a low vibration, which ultimately implies that the noise would be less.

·        It doesn’t take much to get your machine installed.

·        You don’t need much to maintain our product. They come with low maintenance costs.

·        It provides completely oil-free water lube functions.

·        It is beautifully designed to produce low noise, whisper-quiet functionality.

·        Our pieces of machinery are not space-consuming, so you don’t have to worry about space.

·        If you are looking for a state-of-the-art control concept, then our services are the best.



You Can Rely On LeRêve Air Water Lube Oil-Free Air Compressor

Relying on a manufacturer or distributor with no track record for the delivery of your desired products can be dangerous. This is why you need the best in the manufacturing and exportation of water lube oil-free air compressors. You can rely on us for high-quality machinery manufacturing and exportation. Our products come with industry-leading components and innovations that beat imagination. Our products are suitable for simple, intermediate, and advanced applications. Don’t worry, if you probably may have searched for the model you are looking for and haven’t seen it.  We have a collection of different models. Get in touch with us let’s take you on a tour.

Also, you don’t need to go through rigorous stress to find a reliable scroll oil-free air compressor. LeRêve Air is that reliable Chinese manufacturer and China supplier to help you in that regard. We are the best in the manufacturing and distribution of high-quality commercial and industrial screw air compressors and diesel-powered generators. You can count on our products as we offer you suitable oil-free pressure boosters. We are rated among the top 5 quality machinery producers in China. Want to learn more about our product offerings? kindly visit our product page for more information about the product details and parameters.



We Respond To Your Needs With Helpful Solutions

In today’s world, the demand for customer satisfaction is extremely high. We understand that customers are attracted to prompt response time. They interpret that as part of a good customer relationship. Part of their expectations involves fast service delivery and quick response to their burning questions.

LeRêve Air is always eager to respond to all your needs and provide you with helpful solutions. Our customer service is prompt to respond to customers’ texts and emails. You can trust us for all your needs. Get in touch with us right away.

Parameters



LRVOF-  Series Working Pressure Capacity Power Noise Air Outlet Pipe Diameter Net Weight Dimensions (mm)
bar psig (m3/min) cfm kW hp dB kg Length Width

Height

LRVOF-18.5  (FW/VW) 7 102 3.1 109 18.5 25 60±3 G1" 700 1400 1000 1200
LRVOF-18.5  (FW/VW) 8 116 2.8 99 18.5 25 60±3 G1" 700 1400 1000 1200
LRVOF-18.5  (FW/VW) 10 145 2.5 88 28.5 25 60±3 G1" 700 1400 1000 1200
LRVOF-22 (FW/VW) 7 102 3.7 131 22 30 60±3 G1" 700 1400 1000 1200
LRVOF-22 (FW/VW) 8 116 3.4 120 22 30 60±3 G1" 700 1400 1000 1200
LRVOF-22 (FW/VW) 10 145 3.0 106 22 30 60±3 G1" 700 1400 1000 1200
LRVOF-30 (FW/VW) 7 102 5.2 184 30 40 65±3 G1-1/2" 1150 2000 1200 1400
LRVOF-30 (FW/VW) 8 116 4.7 166 30 40 65±3 G1-1/2" 1150 2000 1200 1400
LRVOF-30 (FW/VW) 10 145 4.3 153 30 40 65±3 G1-1/2" 1150 2000 1200 1400
LRVOF-37 (FW/VW) 7 102 6.1 215 37 50 65±3 G1-1/2" 1200 2000 1200 1400
LRVOF-37 (FW/VW) 8 116 5.6 198 37 50 65±3 G1-1/2" 1200 2000 1200 1400
LRVOF-37 (FW/VW) 10 145 5.0 177 37 50 65±3 G1-1/2" 1200 2000 1200 1400
LRVOF-45 (FW/VW) 7 102 7.5 265 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-45 (FW/VW)
8 116 6.8 240 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-45 (FW/VW)
10 145 6.0 212 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-55 (FW/VW)
7 102 10.0 353 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-55 (FW/VW)
8 116 9.0 318 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-55 (FW/VW)
10 145 7.8 275 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-75 (FW/VW)
7 102 13.0 459 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-75 (FW/VW)
8 116 12.0 424 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-75 (FW/VW)
10 145 10.0 353 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-90 (FW/VW)
7 102 15.5 547 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-90 (FW/VW)
8 116 14.0 494 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-90 (FW/VW)
10 145 12.5 441 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-110 (FW/VW)
7 102 20.0 706 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-110 (FW/VW)
8 116 18.0 636 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-110 (FW/VW)
10 145 16.0 565 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-132 (FW/VW)
7 102 25.0 883 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-132 (FW/VW)
8 116 23.0 812 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-132 (FW/VW)
10 145 20.0 706 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-160 (FW/VW)
7 102 27.0 953 160 215 74±3 DN65 4200 3000 2000 2200
LRVOF-160 (FW/VW)
8 116 25.5 901 160 215 74±3 DN65 4200 3000 2000 2200
LRVOF-160 (FW/VW)
10 145 23.0 848 160 215 74±3 DN65 4200 3000 2200 2200
LRVOF-185 (FW/VW)
7 102 30.0 1059 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-185 (FW/VW)
8 116 28.0 989 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-185 (FW/VW)
10 145 25.0 883 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-200 (FW/VW)
7 102 36.0 1271 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-200 (FW/VW)
8 116 33.0 1165 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-200 (FW/VW)
10 145 27.0 953 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-250 (FW/VW)
7 102 43.0 1519 250 350 78±3 DN100 5000 3000 2000 2100
LRVOF-250 (FW/VW)
8 116 41.0 1448 250 350 78±3 DN100 5000 3000 2000 2200
LRVOF-250 (FW/VW)
10 145 38.0 1342 250 350 78±3 DN100 5000 3000 2000 2200
