Dry Oil-Free Air Compressors
Lereve Air China Manufacturer
Click to enlarge

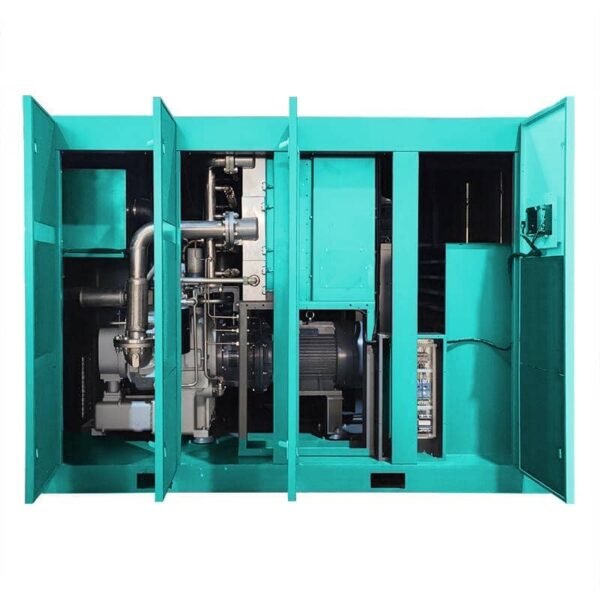

Dry Oil-Free Air Compressors
Lereve Air China Manufacturer
Home Oil-Free Screw Air Compressor Dry Oil-Free Air Compressor Dry Oil Free Air Compressor
Group 530
Oil Free Booster Compressor
Back to products
Top 10 Screw Air Compressors in Italy
Two Stages Screw Air Compressor

Dry Oil Free Air Compressor

Product Name: Dry Oil-Free Air Compressor
Gas Type: Air
Power: 45KW – 350KW
Voltage: 220V, 380V, 460V (50Hz/60Hz)
Pressure: 7-20Bar
Outlet Size: G1/2-12″
Lubrication Style: Oil-Free Dry Type
Drive Method: Fixed Speed / Variable Speed
Warranty: 2-Years
Certification: CE / ISO
Customization: ODM / OEM Available









Category: Dry Oil-Free Air Compressor Tag: Dry Type 100% Oil-Free Compressor
  • Description
  • Parameters
Description

DRY OIL-FREE AIR COMPRESSOR

The Dry Oil-Free Air compressor is a type of compressor that functions without oil in the lubricating chamber or the pump’s compression mechanism. What this means is that your application or end product is free from being contaminated by oil. The mechanism is rather coated permanently with lubricating material like Teflon so that the compressor chamber is properly lubricated.



Types of Dry Oil-Free Air Compressors

LeRêve Air is a leading exporter from China that supplies different types of high-quality dry oil-free air compressors. Our variety of dry oil-free air compressors are classified according to their mechanism and compresses air. The three major types include the following:

·        Piston Oil-Free Air Compressors: This type of air compressor has a cylinder with a piston inside it. Once the piston moves down, space is created right above the cylinder letting air from the atmosphere down into the top of the cylinder through a cove regulator. Immediately the air is compressed, it is released through a discharge valve straight into the storage tank.

·        Rotary Screw Compressors: This type of air compressor has two edges and propellers adjacent to each other on the compression chamber. These adjacent propellers work in opposite directions while at the same time not having any physical contact with each other. The compression chamber receives air and forces it through the narrow gap that is between the rotors which get compressed in the process.

·        Rotary Scroll Compressors: With this type of air compressor, you’ll find that the compression chamber holds two coil-shaped metal pieces inside of it, one inside the other. The chamber draws air into it while the inner coil oscillates within the fixed outer spiral which minimizes the volume of air and directs it toward the middle of the spiral.



Product Lifespan – Dry Oil-Free Air Compressor

For starters, it’s important to note that oil-free air compressors aren’t meant to function for an extended period of time. Of course, even humans need rest to get refreshed. So do machines. Excessively using the compressor without moments of breaks in between will eventually cause the permanent lubrication materials to wear out. This will in turn affect the product lifespan.

Generally, the lifespan of any product—irrespective of the quality—largely depends on how well the user maintains and takes proper care of the product. But typically, LeRêve Air products last around 10 to 30 years. We produce and distribute products that typically have around 4000 to 1000 hours of service. You can get in touch with us for a more detailed product description and parameters.



Benefits Of Dry Oil-Free Air Compressors

We’ve provided you with a few benefits that come with owning a dry oil-free air compressor.

·, Unlike oil-lubed kind of compressors, you virtually have no risk of contaminating the air with oil.

·        When it comes to the low cost of maintenance, dry oil-free air compressors have an edge over their oil-lubed counterpart.

·        Dry oil-free air compressors are friendlier to our environments. You don’t have to worry about chemical hazards, etc.

·        It also has a cost advantage. The dry oil-free air compressors usually are less expensive, unlike their oil-lubed counterpart. You don’t spend much to own and maintain an air compressor.

·         If you are looking for compressors suitable for cold temperatures, then oil-free air compressors are your best bet. They function better in cold temperatures.

·        The dry oil-free air compressors are easy to transport.



Where To Get Reliable Dry Oil-Free Air Compressor

Finding a reliable supply with high-quality machinery can be demanding, considering the different counterfeits out there in the market. You don’t need to go through rigorous stress to find a reliable one. LeRêve Air is that reliable Chinese manufacturer and China supplier. We are the best in the manufacturing and distribution of commercial and industrial screw air compressors and diesel-powered generators. You can count on us for reliable oil-free air compressors that are suitable for your needs. We are rated among the top 5 quality machinery producers in China. Want to learn more about our product offerings? Kindly visit our product page for more information about the product details and parameters.

Parameters



LRVOF-  Series Working Pressure Capacity Power Noise Air Outlet Pipe Diameter Net Weight Dimensions (mm)
bar psig (m3/min) cfm kW hp dB kg Length Width

Height

LRVOF-45 (FD/VD) 7 102 4.4-7.6 155-268 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-45 (FD/VD) 8 116 4.4-7.6 155-268 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-45 (FD/VD) 10 145 3.9-6.9 137-243 45 60 65±3 DN50 2700 2200 1400 2000
LRVOF-55 (FD/VD) 7 102 5.6-9.6 197-339 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-55 (FD/VD) 8 116 5.1-8.9 180-314 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-55 (FD/VD) 10 145 4.5-7.9 158-278 55 75 65±3 DN50 2900 2200 1400 2000
LRVOF-75 (FD/VD) 7 102 7.3-12.5 257-441 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-75 (FD/VD) 8 116 7.3-12.5 257-441 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-75 (FD/VD) 10 145 6.5-11.2 229-395 75 100 68±3 DN50 3000 2200 1400 2000
LRVOF-90 (FD/VD) 7 102 9.4-16.0 332-566 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-90 (FD/VD) 8 116 8.5-14.5 300-512 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-90 (FD/VD) 10 145 7.5-12.9 264-455 90 120 68±3 DN50 3500 2200 1400 2000
LRVOF-110 (FD/VD) 7 102 11.5-19.5 406-688 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-110 (FD/VD) 8 116 11.5-19.5 406-688 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-110 (FD/VD) 10 145 9.5-16.2 335-572 110 150 74±3 DN65 3600 3000 2000 2200
LRVOF-132 (FD/VD) 7 102 13.6-23.0 480-812 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-132 (FD/VD) 8 116 13.6-23.0 480-812 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-132 (FD/VD) 10 145 11.8-20.0 416-706 132 175 74±3 DN65 3800 3000 2000 2200
LRVOF-160 (FD/VD) 7 102 15.4-26.0 543-918 160 215 74±3 DN65 4200 3000 2000 2200
LRVOF-160 (FD/VD) 8 116 15.4-26.0 543-918 160 215 74±3 DN65 4200 3000 2000 2200
LRVOF-160 (FD/VD) 10 145 13.9-23.5 490-829 160 215 74±3 DN65 4200 3000 2200 2200
LRVOF-185 (FD/VD) 7 102 17.8-30.0 628-1059 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-185 (FD/VD) 8 116 17.8-30.0 628-1059 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-185 (FD/VD) 10 145 15.4-26.0 543-918 185 250 74±3 DN80 4500 3000 2000 2200
LRVOF-200 (FD/VD) 7 102 20.0-33.6 706-1186 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-200 (FD/VD) 8 116 20.0-33.6 706-1186 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-200 (FD/VD) 10 145 17.3-29.2 610-1031 200 270 74±3 DN100 4700 3000 2000 2200
LRVOF-250 (FD/VD) 7 102 27.4-46.0 967-1624 250 350 78±3 DN100 5000 3000 2000 2100
LRVOF-250 (FD/VD) 8 116 25.0-42.0 882-1483 250 350 78±3 DN100 5000 3000 2000 2200
LRVOF-250 (FD/VD) 10 145 22.4-37.6 791-1327 250 350 78±3 DN100 5000 3000 2000 2200
