Home Air Treatment Equipment Air Receiver Tank Air Receiver Tank
Group 536
Micro Oil Injected Booster
Back to products
130
Single Phase Rotary Air Compressor

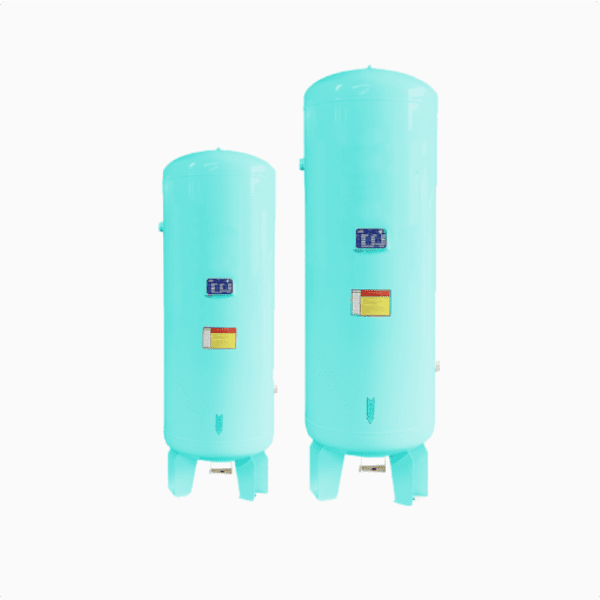

Air Receiver Tank

Product Name: Air Receiver Tank
Gas Type: Air
Volume (L): 600-5000
Working Pressure (MPa): 0.8, 1.0, 1.3, 1.6, and 2.0
Air Inlet & Outlet Diameter: DN25, DN40, DN50, DN80, DN100
Weight (kg): 200 -2500
Warranty: 2-Years
Certification: CE/ISO



Category: Air Receiver Tank Tag: Compressed Air Tanks
  • Description
  • Parameter
Description

AIR RECEIVER TANK

You are probably searching for “the best air receiver tank in China”, or “the best air receiver tank manufacturers in China”. If this is your search, you are at the right place. LeRêve Air provides you with top-quality air receiver tanks for your applications. Generally, an air receiver tank is a kind of pressure vessel, an integral part of any compressed air system that holds compressed air under pressure for future use. Aside from holding air for temporal use, the air receiver tank also helps to enhance the efficiency of your engine. They come in different shapes and sizes, depending on the application. Some sizes range from 600 Liter to 20000 Litter.

Getting a quality air receiver tank from a reliable manufacturer such as LeReve Air comes with the following capabilities:



Types of Air Receiver Tanks

At LeReve Air, there are two kinds of air receiver tanks you should know about. Though they are different, they do almost the same thing. Their difference basically lies in how they are placed.

Wet Tank

When you are looking for a tank to use in a system that has a high level of humidity, then go for a wet tank. This tank is usually installed before the dryer. With this type, the air condensate drops out of the air before going into the dryer while lightening the dryer’s workload.

Dry Tank

This type of tank is used to protect the surges from having the dryers worn out while carrying water down-line and affecting the system pressure. It is placed below the dryer; especially when the system lacks steady air. This is usually suitable for systems that have slow compressor cycles.

What Air Receiver Can Do

Getting a quality air receiver tank from a reliable manufacturer such as LeReve Air comes with the following capabilities:

It Stifles Pulsation

Air receiver tanks stifle the pulses during the compression of air in a reciprocating compressor. This in turn makes the delivery of air into the piece of equipment run smoothly. When this is done, the hoses and other pieces of machinery are protected from pressure points.

It Reserves Air

Air receiver tanks help to store compressed air for future use once the compressor is off. It is also used to offset sudden and heavy demand for air. You can also use a smaller compressor in low-duty-cycle apps that require a higher amount of airflow greater than what the compressor can deliver.

It Removes Dirt

One major function an air receiver tank does is to particulate the compression and remove dirt that may have bypassed the air filter. When the air filter is blocked, it wears out the tools and causes the filters to die out early.

It Removes Moistures

The air receiver tank helps to remove moistures that are drawn into the compressor. When the system is in operation, the air receiver typically absorbs air from the atmosphere. This air condenses into liquid after the air cools down and enters the airline hot while coming out as liquid. But the presence of an air receiver tank helps to cool off the air which may be detrimental to the system.

It Reduces Compressor Cycling

The air receiver tank serves as a buffer by allowing the compressor to cycle on and off in a less frequent manner. When cycling is minimized, it prevents unnecessary energy consumption, and also from wearing or tearing.



Why You Need An Air Receiver Tank

We offer you products that guarantee multiple benefits. Even though our air receiver tanks vary in shape and size, they all serve the same purpose at different degrees. Owning an air receiver tank gives you the following benefits:

  •       Increases Productivity: The receiver tank enhances your business performance. This is usually the wisest decision to make especially as a business. Receiver tanks are the best way to store air for future purposes while saving some cash.
  •       Energy Storage: Did you know you can store energy for future use? Well, you know now. The truth is, with an air receiver tank, you don’t have to worry about a power outage and disrupt business performance.
  •       Durability: No one wants their equipment to break down. Or do you? With an air receiver tank, your system compressor withstands damage and stays longer.



Want An Air Receiver Tank?

LeRêve Air offer different models of air receiver tanks with a warranty. We have these and more options available for you.

  •       Powder Interior & Exterior
  •       Enamel Exterior
  •       Exterior Prime
  •       Epoxy Interior
  •       Premium Galvanize Interior

For more details on the available options, kindly reach out to us, let’s find your specific model and type. Click on ‘Get a Quote / Request a Quote’ and send us your requirements, we will back to you as soon as possible within 24hours.

It’s Our Pleasure To Serve You

Customer service is something we don’t take for granted. We understand that the very thrust of our business existence largely depends on the existence of our customers. We exist to serve you and it is our pleasure to serve you. In order to give you the best services you deserve, we have selected a team of experts on standby to attend to all your questions and needs. We understand that when it comes to picking a reliable compressor with high-quality functionality, the task can be demanding, considering the different counterfeits out there in the market. You don’t need to go through rigorous stress to find a reliable one. We are here for you. If you have any questions or inquiries, kindly use the contact button.



Parameter
LRVAT Series Working Pressure Capacity Power Noise Air Outlet Pipe Diameter Net Weight Dimensions (mm)
bar psig Liter  cfm kW hp dB kg Length Width

Thickness mm

LRVAT-0.6/0.8 8 116 600 n/a n/a n/a n/a DN40 200 2050 650 4
LRVAT-0.6/1.0 10 145 600 n/a n/a n/a n/a DN40 200 2050 650 4.5
LRVAT-0.6/1.3 13 189 600 n/a n/a n/a n/a DN40 200 2050 650 5
LRVAT-0.8/0.8 8 116 800 n/a n/a n/a n/a DN40 200 2050 650 4
LRVAT-0.8/1.0 10 145 800 n/a n/a n/a n/a DN40 200 2050 650 4.5
LRVAT-0.8/1.3 13 189 800 n/a n/a n/a n/a DN40 200 2050 650 5
LRVAT-1.0/0.8 8 116 1000 n/a n/a n/a n/a DN40 200 2170 800 4
LRVAT-1.0/1.0 10 145 1000 n/a n/a n/a n/a DN40 200 2170 800 4.5
LRVAT-1.0/1.3 13 189 1000 n/a n/a n/a n/a DN40 200 2170 800 5
LRVAT-2.0/0.8 8 116 2000 n/a n/a n/a n/a DN50 350 2880 1000 4
LRVAT-2.0/1.0 10 145 2000 n/a n/a n/a n/a DN50 350 2880 1000 4.5
LRVAT-2.0/1.3 13 189 2000 n/a n/a n/a n/a DN50 350 2880 1000 5
LRVAT-3.0/0.8 8 116 3000 n/a n/a n/a n/a DN80 500 2950 1200 5
LRVAT-3.0/1.0 10 145 3000 n/a n/a n/a n/a DN80 500 2950 1200 6
LRVAT-3.0/1.3 13 189 3000 n/a n/a n/a n/a DN80 500 2950 1200 8
LRVAT-5.0/0.8 8 116 5000 n/a n/a n/a n/a DN100 700 3800 1400 5
LRVAT-5.0/1.0 10 145 5000 n/a n/a n/a n/a DN100 700 3800 1400 6
LRVAT-5.0/1.3 13 189 5000 n/a n/a n/a n/a DN100 700 3800 1400 8





Let us know your requirements

Feel free to inquire to explore our wide range of screw air compressors.

Request a quote
